132kV High Voltage Cables

Products

1x500

Nexans ref. 31500EXWOUC00S00

  • Conductor shape: Circular compacted
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 86.4 mm
  • Approximate weight: 15302 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
  • Earth Fault Current Rating for 1s kA: 22.27 kA
  • Permissible short circuit current screen 0.5s: 31.5 kA
  • Nominal phase capacitance: 0.183 µF / km



1x500

Nexans ref. 31500EXWOUC00S06

  • Conductor shape: Circular compacted
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 86.9 mm
  • Approximate weight: 16723 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
  • Earth Fault Current Rating for 1s kA: 40 kA
  • Permissible short circuit current screen 0.5s: 56.6 kA
  • Nominal phase capacitance: 0.183 µF / km



1x630

Nexans ref. 31630EXWOUC00S01

  • Conductor shape: Circular compacted
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 88.8 mm
  • Approximate weight: 17408 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.028 Ohm/km
  • Earth Fault Current Rating for 1s kA: 22.27 kA
  • Permissible short circuit current screen 0.5s: 31.5 kA
  • Nominal phase capacitance: 0.205 µF / km



1x630

Nexans ref. 31630EXWOUC00S06

  • Conductor shape: Circular compacted
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 88.8 mm
  • Approximate weight: 18135 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.028 Ohm/km
  • Earth Fault Current Rating for 1s kA: 40 kA
  • Permissible short circuit current screen 0.5s: 56.6 kA
  • Nominal phase capacitance: 0.205 µF / km



1x800

Nexans ref. 31800EXWOUC00S06

  • Conductor shape: Circular compacted
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 800 mm²
  • Nominal outer diameter: 91.0 mm
  • Approximate weight: 19866 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.022 Ohm/km
  • Earth Fault Current Rating for 1s kA: 40 kA
  • Permissible short circuit current screen 0.5s: 56.6 kA
  • Nominal phase capacitance: 0.225 µF / km



1x800

Nexans ref. 31800EXWOUC00S0N

  • Conductor shape: Circular compacted
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 800 mm²
  • Nominal outer diameter: 89.7 mm
  • Approximate weight: 18650 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.022 Ohm/km
  • Earth Fault Current Rating for 1s kA: 22.27 kA
  • Permissible short circuit current screen 0.5s: 31.5 kA
  • Nominal phase capacitance: 0.224 µF / km



1x1000

Nexans ref. M101KEXLOUC00S06

  • Conductor shape: Segmental
  • Screen: No
  • Conductor cross-section: 1000 mm²
  • Nominal outer diameter: 97.5 mm
  • Approximate weight: 26841 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.018 Ohm/km
  • Earth Fault Current Rating for 1s kA: 22.27 kA
  • Permissible short circuit current screen 0.5s: 31.5 kA
  • Nominal phase capacitance: 0.263 µF / km



1x1000

Nexans ref. M101KEXWOUC00S06

  • Conductor shape: Segmental
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 1000 mm²
  • Nominal outer diameter: 98.8 mm
  • Approximate weight: 24206 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.018 Ohm/km
  • Earth Fault Current Rating for 1s kA: 40 kA
  • Permissible short circuit current screen 0.5s: 56.6 kA
  • Nominal phase capacitance: 0.26 µF / km



1x1200

Nexans ref. M112KEXWOUC00S06

  • Conductor shape: Segmental
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 1200 mm²
  • Nominal outer diameter: 104.0 mm
  • Approximate weight: 26555 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.015 Ohm/km
  • Earth Fault Current Rating for 1s kA: 40 kA
  • Permissible short circuit current screen 0.5s: 56.6 kA
  • Nominal phase capacitance: 0.279 µF / km



1x1600

Nexans ref. M116KEXLOUC00S00

  • Conductor shape: Segmental
  • Screen: No
  • Conductor cross-section: 1600 mm²
  • Nominal outer diameter: 106.3 mm
  • Approximate weight: 32570 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.011 Ohm/km
  • Earth Fault Current Rating for 1s kA: 22.27 kA
  • Permissible short circuit current screen 0.5s: 31.5 kA
  • Nominal phase capacitance: 0.306 µF / km



1x1600

Nexans ref. M116KEXWOUC00S06

  • Conductor shape: Segmental
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 1600 mm²
  • Nominal outer diameter: 107.1 mm
  • Approximate weight: 30824 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.011 Ohm/km
  • Earth Fault Current Rating for 1s kA: 40 kA
  • Permissible short circuit current screen 0.5s: 56.6 kA
  • Nominal phase capacitance: 0.304 µF / km



1x2000

Nexans ref. M120KEXLOUC00S00

  • Conductor shape: Segmental
  • Screen: No
  • Conductor cross-section: 2000 mm²
  • Nominal outer diameter: 112.4 mm
  • Approximate weight: 36320 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.009 Ohm/km
  • Earth Fault Current Rating for 1s kA: 22.27 kA
  • Permissible short circuit current screen 0.5s: 31.5 kA
  • Nominal phase capacitance: 0.336 µF / km



1x2000

Nexans ref. M120KEXWOUC00S06

  • Conductor shape: Segmental
  • Screen: Copper wire + copper tape
  • Conductor cross-section: 2000 mm²
  • Nominal outer diameter: 116.8 mm
  • Approximate weight: 37853 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.009 Ohm/km
  • Earth Fault Current Rating for 1s kA: 40 kA
  • Permissible short circuit current screen 0.5s: 56.6 kA
  • Nominal phase capacitance: 0.336 µF / km



Description

Description

Standards

  • International
    IEC 60840



Since the late 1960s, Nexans has been developing an entire range of XLPE insulated cables for high voltage-transmission.

 132kV HV Cables are  fully in compliance with IEC 60840

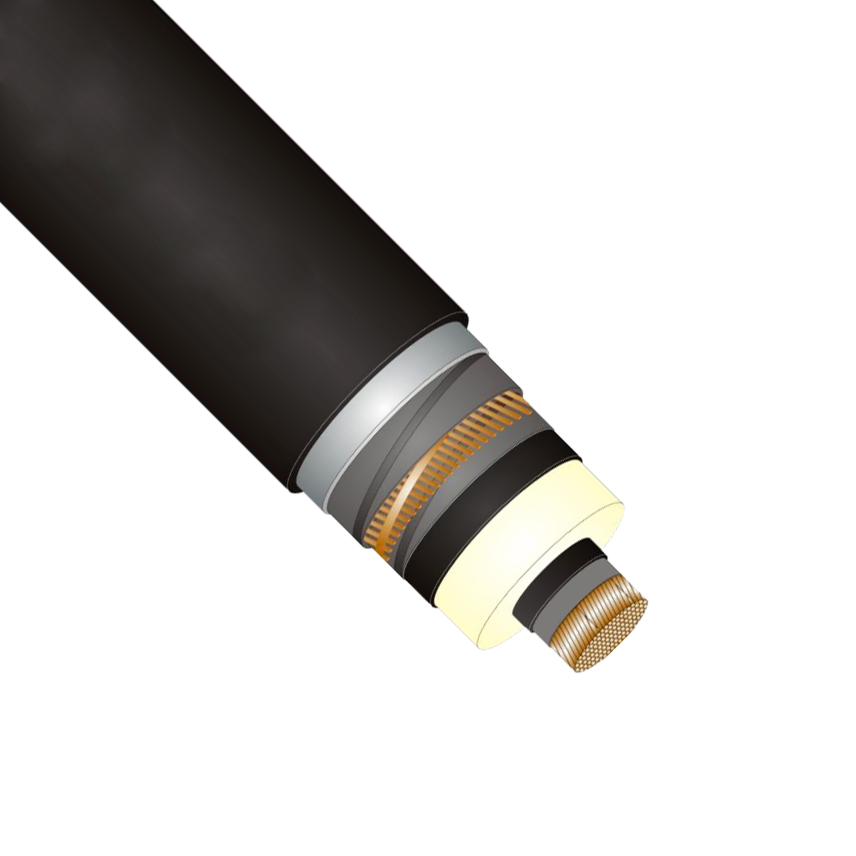

Cable Construction  :

 Conductor :

Plain annealed Copper Conductor (Water tight) to meet the requirements of IEC 60840

Types of Conductor construction :

   - Circular Compacted for Sizes 240 Sq.mm - 800 Sq.mm

   - Segmental Compacted for 1000 Sq.mm and above .

Water Blocking (Water tight ) Conductor shall be achived by water blocking tapes applied over each layer of conductor strands to avoid water ingress inside the conductor . Suitable bnder tapes shall be provided over the conductor to prevent the extruded semiconducting layer falling between the intersitices of the conductor strands.



Conductor Screen :

Extruded Black Semiconducting Thermosetting material (Firmly bonded)



Insulation :

Extruded Cross linked Polyethylene



Insulation Screen :

Extruded Black Semiconducting Thermosetting material (Firmly Bonded )



Mettallic Screen :

Copper wires with Open Helix Copper tape with Water swellable tapes over and below screen



Mettallic Sheath (for Radial Water Blocking) :

Lead alloy



Outersheath :

HDPE (High Density Polyethylene )

With Graphite coating



 Marking on outersheath : (by Embossing)

132000V ELECTRIC CABLE (Cable size) (cable description)  QICC-NEXANS MADE IN QATAR  Year PROPERTY OF KAHRAMAA    Meters



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Class 2
Material of the external semi-conductor
Semi-conducting compound
Insulation
XLPE (Cross-linked Polyethylene)
Material of the inner semi-conductor
Semi-conducting compound
Metallic sheath
Lead
Outer sheath
HDPE
Sheath colour
Black

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
76/132 kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Minimum bending radius, fixed installation
30 (xD)

Resources

Resources

Selling & delivery Information

All high voltage cables are manufactured on the basis of your specifications. Therefore, all technical information contained in this catalogue are purely for information purposes.

If you don't find your specific requirements, Nexans is manufacturing other types of cables on request.
