1C X 300 Sq.mm

Scope

The Cables covered in this specification are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plants...).

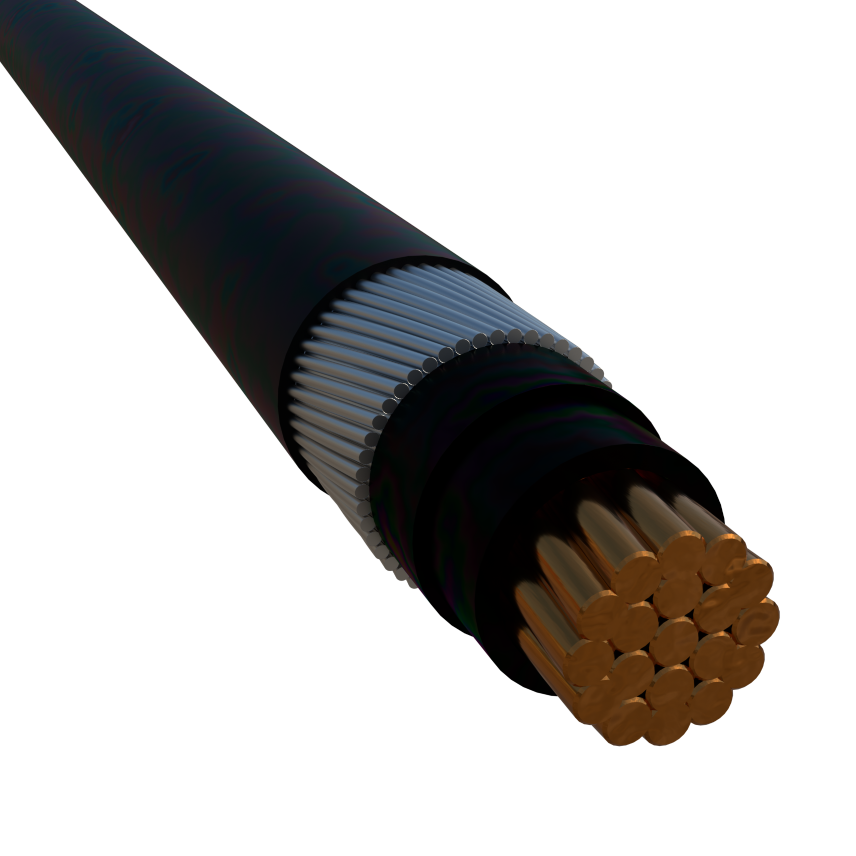

Design

1. Conductor

Plain annealed high-conductivity Stranded Copper Class 2 conforming to BS EN 60228

2. Insulation

XLPE

3. Filling or Bedding

 Extruded PVC

4. Armour

Single layer of Aluminium Round Wires (AWA)

5. Outer Sheath

Flame Retardant PVC

 - Flame retardant : IEC60332-3-22 CAT A

 - Colour :  Black

Marking (by Embossing/Engraving)

NO.OF CORES X Sq.mm CU/XLPE/AWA/PVC FR 600/1000 V  IEC 60502-1 IEC 60332-3-22 MADE IN QATAR QICC-NEXANS Years  Meters
