2C X 185 Sq.mm CU/XLPE/SWA/HFFR

Scope

 This specification covers two core, XLPE insulated cables for use on the Qatar Power Systems ,Street lightning and Small wiring systems. These cables are complying with BS 6724 and QCS 2014 Standards .

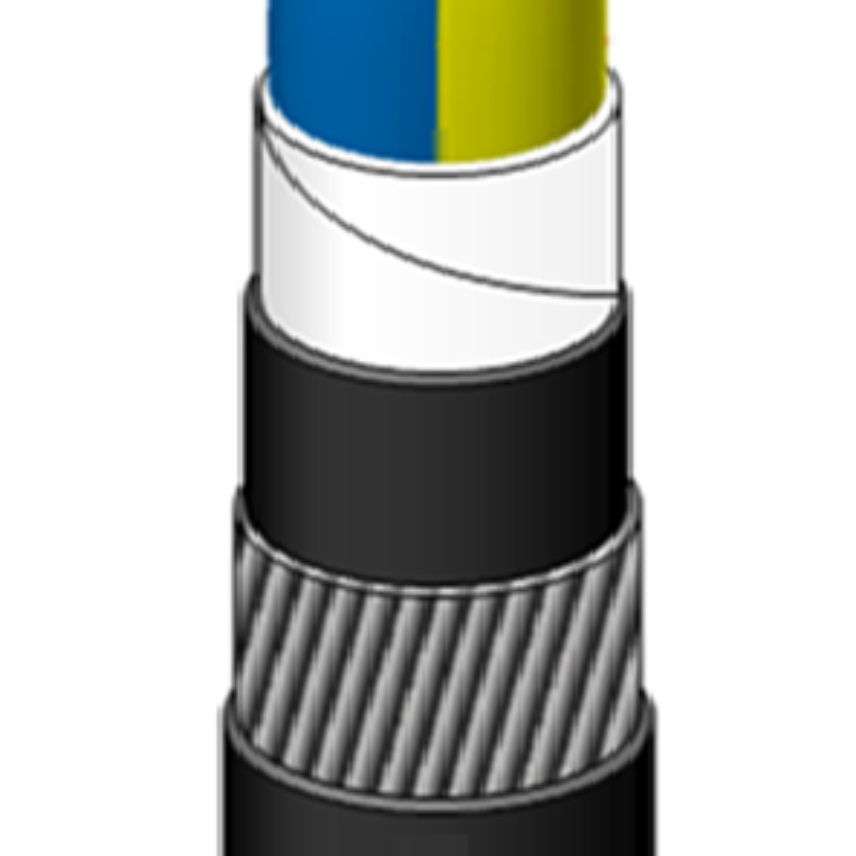

Design

1. Conductor

Plain annealed high-conductivity Stranded Copper Class 2 conforming to BS EN 60228

2. Insulation

XLPE insulation Type GP8 conforming to BS 7655-1

3. Filling or Bedding

 Extruded HFFR

4. Armour

Single layer of Galvanised Steel Wires (GSWA)

5. Outer Sheath

Halogen Free Flame Retardant (HFFR)

 - Flame retardant : IEC60332-3-24 CAT C

 - Colour :  Black

Marking

2 X 185 CU/XLPE/SWA/HFFR 600/1000 V  BS 6724 MADE IN QATAR QICC-NEXANS Years  Meters
