2-CORE CU,XLPE,GSWA,PVC SHEATHED CABLES FOR OIL & GAS PROJECTS

Products

2C X 1.5 mm2 NEW

Nexans ref. 22002QXZVSBZ1BE0

  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 293.02 kg/km
  • Nominal outer diameter: 12.8 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 23 A



2C X 2.5 mm2 NEW

Nexans ref. 22003QXZVSBZ1BE0

  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 344.8 kg/km
  • Nominal outer diameter: 13.7 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 30 A



2C X 4 mm2 NEW

Nexans ref. 22004QXZVSBZ1BE0

  • Conductor cross-section: 4 mm²
  • Approximate weight: 417.06 kg/km
  • Nominal outer diameter: 14.8 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 44 A
  • Permissible current rating when buried: 39 A



2C X 6 mm2 NEW

Nexans ref. 22006QXZVSBZ1BE0

  • Conductor cross-section: 6 mm²
  • Approximate weight: 499.5 kg/km
  • Nominal outer diameter: 15.9 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 56 A
  • Permissible current rating when buried: 49 A



2C X 10 mm2 NEW

Nexans ref. 22010QXZVSBZ1BE0

  • Conductor cross-section: 10 mm²
  • Approximate weight: 688.52 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 78 A
  • Permissible current rating when buried: 65 A



2C X 16 mm2 NEW

Nexans ref. 22016QXZVSBZ1BE0

  • Conductor cross-section: 16 mm²
  • Approximate weight: 894.69 kg/km
  • Nominal outer diameter: 19.8 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 84 A



2C X 25 mm2 NEW

Nexans ref. 22025QXZVSBZ1BE0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 1340.25 kg/km
  • Nominal outer diameter: 23.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 107 A



2C X 35 mm2 NEW

Nexans ref. 22035QXZVSBZ1BE0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 1639.54 kg/km
  • Nominal outer diameter: 25.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 129 A



2C X 50 mm2 NEW

Nexans ref. 22050QXZVSBZ1BE0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 1850.54 kg/km
  • Nominal outer diameter: 28.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 153 A



2C X 70 mm2 NEW

Nexans ref. 22070QXZVSBZ1BE0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 2432.9 kg/km
  • Nominal outer diameter: 32.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 188 A



2C X 95 mm2 NEW

Nexans ref. 22095QXZVSBZ1BE0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 3274 kg/km
  • Nominal outer diameter: 36.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 226 A



2C X 120 mm2 NEW

Nexans ref. 22120QXZVSBZ1BE0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 3971 kg/km
  • Nominal outer diameter: 40.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 257 A



2C X 150 mm2 NEW

Nexans ref. 22150QXZVSBZ1BE0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 4697 kg/km
  • Nominal outer diameter: 43.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 287 A



2C X 185 mm2 NEW

Nexans ref. 22185QXZVSBZ1BE0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 6072 kg/km
  • Nominal outer diameter: 49.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 324 A



2C X 240 mm2 NEW

Nexans ref. 22240QXZVSBZ1BE0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 7358 kg/km
  • Nominal outer diameter: 54.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
  • Permissible current rating in open air: 546 A
  • Permissible current rating when buried: 375 A



Description

Description

Standards

  • Product
    IEC 60502-1
  • Test
    IEC 60332-3-22 Cat.A

Scope

The Cables covered in this specification are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plants...).



Design



1. Conductor

Plain annealed high-conductivity Stranded Copper Class 2 conforming to BS EN 60228



2. Insulation

XLPE



3. Filling or Bedding

 Extruded PVC

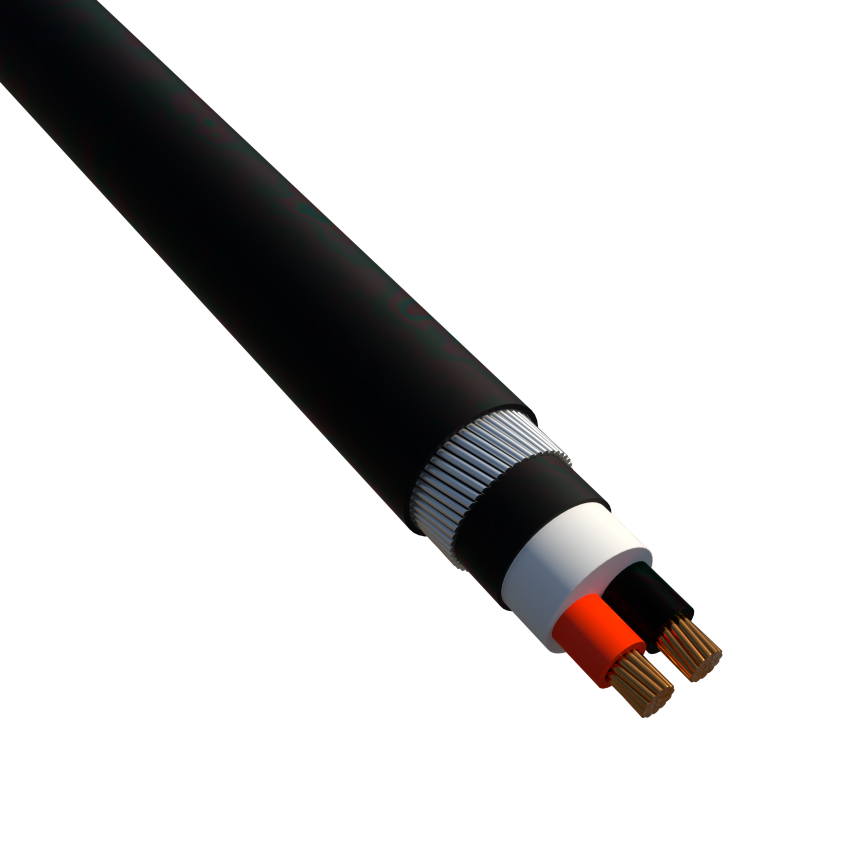

4. Armour

Single layer of Galvanised Steel Wires (GSWA)



5. Outer Sheath

Flame Retardant PVC

 - Flame retardant : IEC60332-3-22 CAT A

 - Colour :  Black



Marking (by Embossing/Engraving)

NO.OF CORES X Sq.mm CU/XLPE/PVC/GSWA/PVC FR 600/1000 V  IEC 60502-1 IEC 60332-3-22 MADE IN QATAR QICC-NEXANS Years  Meters







Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular
Insulation
XLPE
Core identification
Red,Black
Inner sheath
PVC
Armour type
Galvanized steel wires
Outer sheath
Flame retardant PVC
Colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
2

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
12 (xD)
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Laying depth, center of system
700 mm
Max. pulling force during laying
50 N/mm2
Resistant to termites
Yes
