3-CORE,XLPE,SWA,HFFR SHEATHED CABLES AS PER QCS 2014
3-CORE,XLPE,SWA,HFFR SHEATHED CABLES AS PER QCS 2014
3-CORE,XLPE,SWA,HFFR SHEATHED CABLES AS PER QCS 2014
Read more3C X 1.5 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23002SXZHSH30BS0

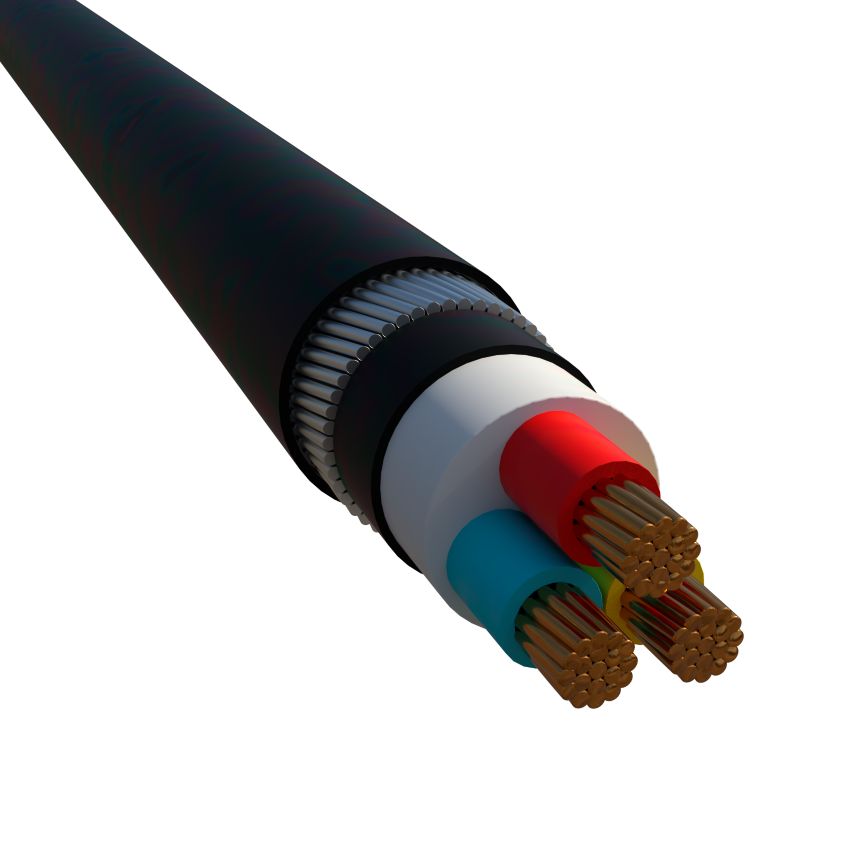

- Conductor shape: Circular
- Conductor cross-section: 1.5 mm²
- Approximate weight: 245 kg/km
- Nominal outer diameter: 11.7 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 25 A
- Permissible current rating when buried: 23 A
- Voltage drop, 3 conductors: 22.8 V/A.km
3C X 2.5 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23003SXZHSH30BS0
- Conductor shape: Circular
- Conductor cross-section: 2.5 mm²
- Approximate weight: 310 kg/km
- Nominal outer diameter: 13.1 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 30 A
- Voltage drop, 3 conductors: 14.0 V/A.km
3C X 4 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23004SXZHSH30BS0
- Conductor shape: Circular
- Conductor cross-section: 4 mm²
- Approximate weight: 402 kg/km
- Nominal outer diameter: 14.4 mm
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 44 A
- Permissible current rating when buried: 39 A
- Voltage drop, 3 conductors: 8.7 V/A.km
3C X 6 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23006SXZHSH30BS0
- Conductor shape: Circular
- Conductor cross-section: 6 mm²
- Approximate weight: 497 kg/km
- Nominal outer diameter: 15.8 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 56 A
- Permissible current rating when buried: 49 A
- Voltage drop, 3 conductors: 5.9 V/A.km
3C X 10 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23010SXZHSH30BS0
- Conductor shape: Circular
- Conductor cross-section: 10 mm²
- Approximate weight: 756 kg/km
- Nominal outer diameter: 17.9 mm
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 78 A
- Permissible current rating when buried: 65 A
- Voltage drop, 3 conductors: 3.5 V/A.km
3C X 16 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23016SXZHSH30BS0
- Conductor shape: Circular
- Conductor cross-section: 16 mm²
- Approximate weight: 991 kg/km
- Nominal outer diameter: 20.1 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 84 A
- Voltage drop, 3 conductors: 2.2 V/A.km
3C X 25 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23025SXZHSH30BS0
- Conductor shape: Circular
- Conductor cross-section: 25 mm²
- Approximate weight: 1494 kg/km
- Nominal outer diameter: 24.7 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 107 A
- Voltage drop, 3 conductors: 1.7 V/A.km
3C X 35 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23035SXZHSH30BS0
- Conductor shape: Circular
- Conductor cross-section: 35 mm²
- Approximate weight: 1841 kg/km
- Nominal outer diameter: 27.1 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 162 A
- Permissible current rating when buried: 129 A
- Voltage drop, 3 conductors: 1.2 V/A.km
3C X 50 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23050SXZHSH30BS0

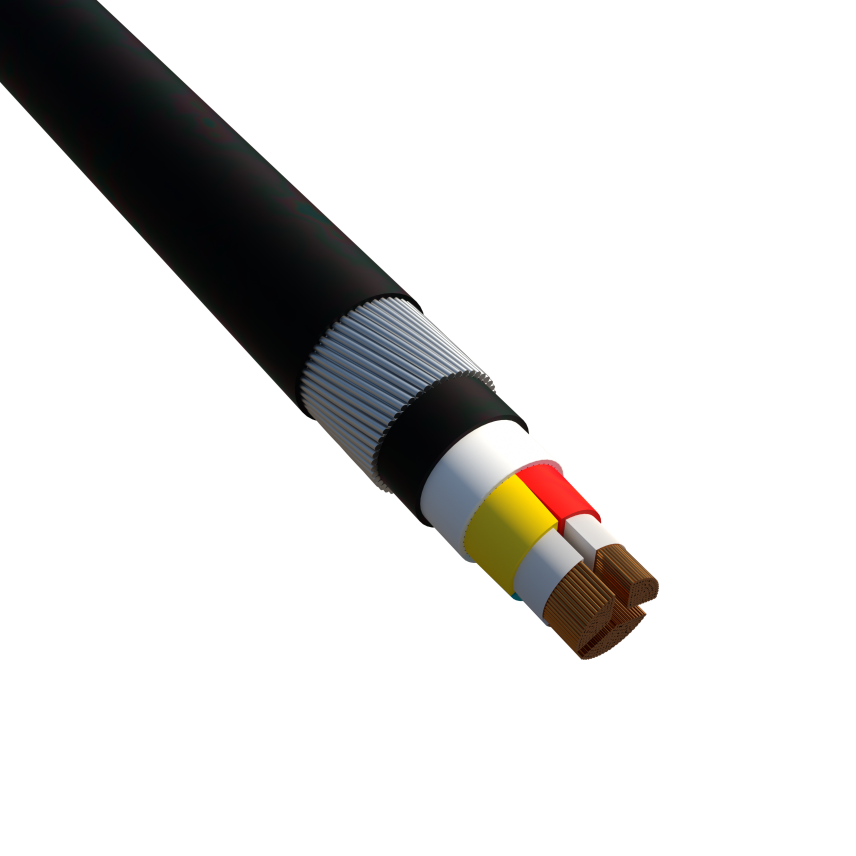

- Conductor shape: Sector-shaped
- Conductor cross-section: 50 mm²
- Approximate weight: 2188 kg/km
- Nominal outer diameter: 27.9 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 197 A
- Permissible current rating when buried: 153 A
- Voltage drop, 3 conductors: 0.89 V/A.km
3C X 70 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23070SXZHSH30BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 70 mm²
- Approximate weight: 2871 kg/km
- Nominal outer diameter: 31.4 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 251 A
- Permissible current rating when buried: 188 A
- Voltage drop, 3 conductors: 0.6 V/A.km
3C X 95 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23095SXZHSH30BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 95 mm²
- Approximate weight: 4050 kg/km
- Nominal outer diameter: 36.0 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 304 A
- Permissible current rating when buried: 226 A
- Voltage drop, 3 conductors: 0.45 V/A.km
3C X 120 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23120SXZHSH30BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 120 mm²
- Approximate weight: 4816 kg/km
- Nominal outer diameter: 39.2 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 257 A
- Voltage drop, 3 conductors: 0.37 V/A.km
3C X 150 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23150SXZHSH30BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 150 mm²
- Approximate weight: 6096 kg/km
- Nominal outer diameter: 43.8 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 406 A
- Permissible current rating when buried: 287 A
- Voltage drop, 3 conductors: 0.3 V/A.km
3C X 185 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23185SXZHSH30BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 185 mm²
- Approximate weight: 7386 kg/km
- Nominal outer diameter: 47.8 mm
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 463 A
- Permissible current rating when buried: 324 A
- Voltage drop, 3 conductors: 0.26 V/A.km
3C X 240 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23240SXZHSH30BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 240 mm²
- Approximate weight: 9189 kg/km
- Nominal outer diameter: 52.9 mm
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 546 A
- Permissible current rating when buried: 375 A
- Voltage drop, 3 conductors: 0.21 V/A.km
3C X 300 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23300SXZHSH30BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 300 mm²
- Approximate weight: 11182 kg/km
- Nominal outer diameter: 57.8 mm
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 628 A
- Permissible current rating when buried: 419 A
- Voltage drop, 3 conductors: 0.18 V/A.km
3C X 400 Sq.mm CU/XLPE/SWA/HFFR NEW
Nexans ref. 23400SXZHSH30BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 400 mm²
- Approximate weight: 14046 kg/km
- Nominal outer diameter: 64.3 mm
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 731 A
- Permissible current rating when buried: 439 A
- Voltage drop, 3 conductors: 0.17 V/A.km
Description
Description
Standards
-
InternationalIEC 60332-3-24 Cat.C
-
NationalBS 6724
Scope
This specification covers two core, XLPE insulated cables for use on the Qatar Power Systems ,Street lightning and Small wiring systems. These cables are complying with BS 6724 and QCS 2014 Standards .
Design
1. Conductor
Plain annealed high-conductivity Stranded Copper Class 2 conforming to BS EN 60228
2. Insulation
XLPE insulation Type GP8 conforming to BS 7655-1
3. Filling or Bedding
Extruded HFFR
4. Armour
Single layer of Galvanised Steel Wires (GSWA)
5. Outer Sheath
Halogen Free Flame Retardant (HFFR)
- Flame retardant : IEC60332-3-24 CAT C
- Colour : Black
Marking
NO.OF CORES X Sq.mm CU/XLPE/SWA/HFFR 600/1000 V BS 6724 MADE IN QATAR QICC-NEXANS Years Meters
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Conductor flexibility
Stranded class 2
Armour type
Galvanized steel wires
Colour
Black
Core identification
Red,Blue,Yellow
Halogen free
Yes
Inner sheath
Halogen free flame retardant
Insulation
XLPE
Outer sheath
HFFR (Halogene Free Flame Retardant)
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Thermal soil resistivity dry zone
2.5 °K.m/W
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
12 (xD)
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Laying depth, center of system
700 mm
Max. pulling force during laying
50 N/mm2
