3-CORE XLPE,SWA,PVC SHEATHED CABLES AS PER QCS 2014

Products

3C X 1.5 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23002FXZVSB09BS0

  • Packaging: m
  • Permissible short circuit current conductor 1s: 0.2 kA



3C X 10 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23010FXZVSB09BS0

  • Packaging: m
  • Permissible short circuit current conductor 1s: 1.4 kA



3C X 120 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23120FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 17.2 kA



3C X 150 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23150FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 21.4 kA



3C X 16 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23016FXZVSB09BS0

  • Packaging: m
  • Permissible short circuit current conductor 1s: 2.3 kA



3C X 185 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23185FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 26.5 kA



3C X 2.5 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23003FXZVSB09BS0

  • Packaging: m
  • Permissible short circuit current conductor 1s: 0.4 kA



3C X 240 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23240FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 34.3 kA



3C X 25 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23025FXZVSB09BS0

  • Packaging: m
  • Permissible short circuit current conductor 1s: 3.6 kA



3C X 300 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23300FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 42.9 kA



3C X 35 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23035FXZVSB09BS0

  • Packaging: m
  • Permissible short circuit current conductor 1s: 5 kA



3C X 4 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23004FXZVSB09BS0

  • Packaging: m
  • Permissible short circuit current conductor 1s: 0.6 kA



3C X 400 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23400FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 57.2 kA



3C X 50 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23050FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 7.2 kA



3C X 6 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23006FXZVSB09BS0

  • Packaging: m
  • Permissible short circuit current conductor 1s: 0.9 kA



3C X 70 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23070FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 10 kA



3C X 95 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 23095FXZ6SB09BS0

  • Permissible short circuit current conductor 1s: 13.6 kA



Description

Description

Standards

  • International
    IEC 60332-1
  • National
    BS 5467

Scope

This specification covers three core, XLPE insulated cables for use in Qatar Power Systems ,Street lighting and Small wiring systems. These cables are complying with BS 5467 and QCS 2014 Standards .

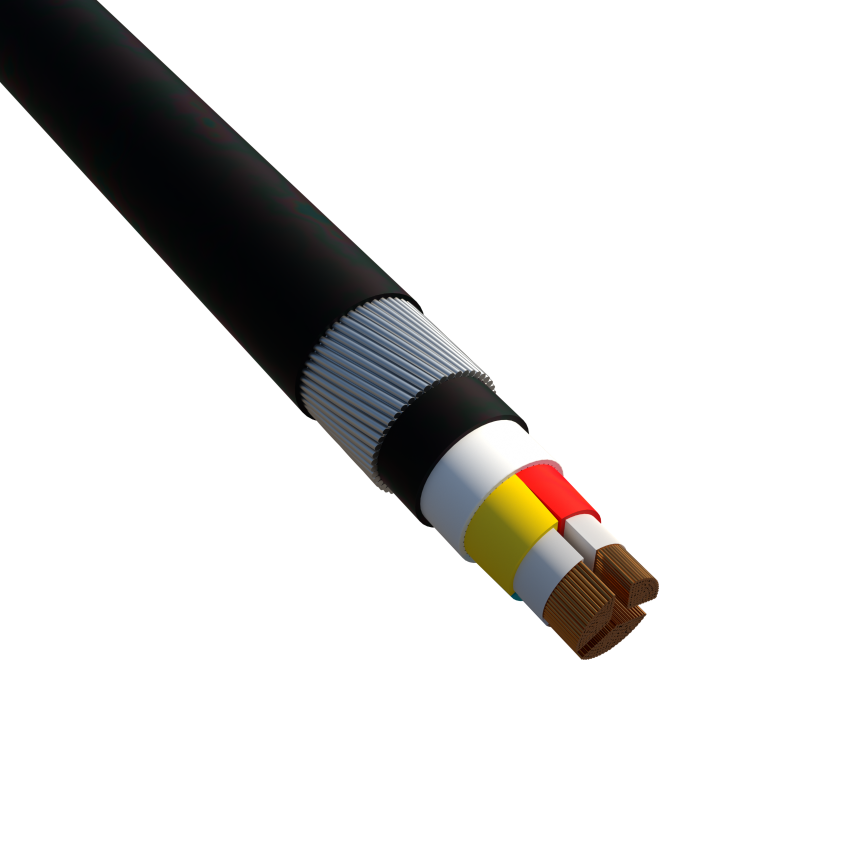

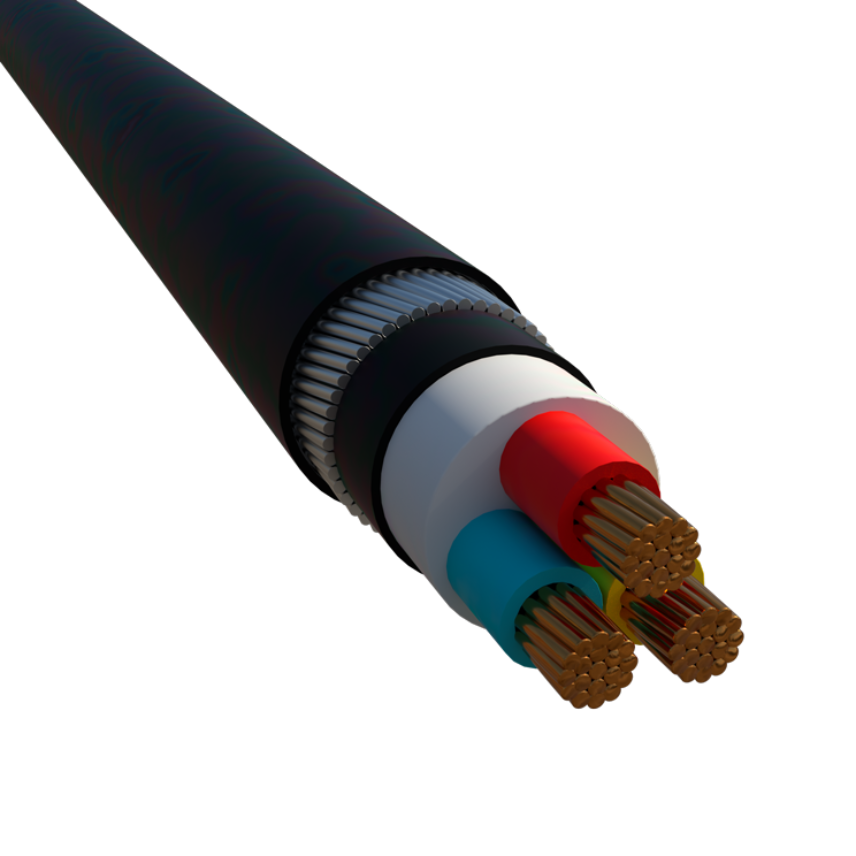

Design



1. Conductor

Plain annealed high-conductivity Stranded Copper Class 2 conforming to BS EN 60228



2. Insulation

XLPE insulation Type GP8 conforming to BS 7655-1



3. Filling or Bedding

 Extruded PVC



4. Armour

Single layer of Galvanised Steel Wires (GSWA)



5. Outer Sheath

Polyvinyl Chloride 'PVC'

 - Flame retardant : IEC60332-1

 - Colour :  Black



Marking

NO.OF CORES X Sq.mm CU/XLPE/SWA/PVC 600/1000 V  BS 5467 MADE IN QATAR QICC-NEXANS Years  Meters







Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Insulation
XLPE
Core identification
Red,Blue,Yellow
Inner sheath
PVC
Armour type
Galvanized steel wires
Outer sheath
PVC
Colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
12 (xD)
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Laying depth, center of system
700 mm
