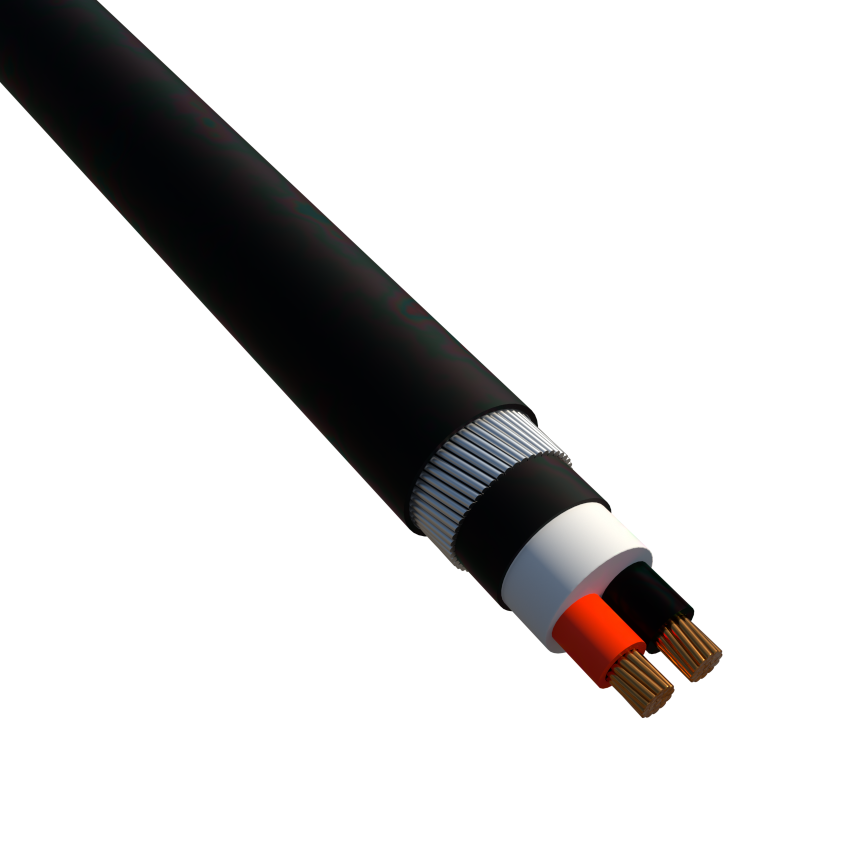

2-CORE XLPE,SWA,PVC SHEATHED CABLES AS PER IEC60502-1

Products

2C X 1.5 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22002BXZVSB09BD0

  • Packaging: m
  • Conductor cross-section: 1.5 mm²
  • Approximate weight: 285 kg/km
  • Nominal outer diameter: 12.5 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 25 A
  • Permissible current rating when buried: 23 A



2C X 2.5 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22003BXZVSB09BD0

  • Conductor cross-section: 2.5 mm²
  • Approximate weight: 342.6 kg/km
  • Nominal outer diameter: 13.7 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 30 A



2C X 4 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22004BXZVSB09BD0

  • Conductor cross-section: 4 mm²
  • Approximate weight: 415 kg/km
  • Nominal outer diameter: 14.8 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 44 A
  • Permissible current rating when buried: 39 A



2C X 6 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22006BXZVSB09BD0

  • Conductor cross-section: 6 mm²
  • Approximate weight: 496.5 kg/km
  • Nominal outer diameter: 15.9 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 56 A
  • Permissible current rating when buried: 49 A



2C X 10 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22010BXZVSB09BD0

  • Conductor cross-section: 10 mm²
  • Approximate weight: 685.6 kg/km
  • Nominal outer diameter: 18.0 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 78 A
  • Permissible current rating when buried: 65 A



2C X 16 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22016BXZVSB09BD0

  • Conductor cross-section: 16 mm²
  • Approximate weight: 892.6 kg/km
  • Nominal outer diameter: 19.8 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 84 A



2C X 25 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22025BXZVSB09BD0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 1337.3 kg/km
  • Nominal outer diameter: 23.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 107 A



2C X 35 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22035BXZVSB09BD0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 1635.8 kg/km
  • Nominal outer diameter: 25.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 129 A



2C X 50 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22050BXZ6SB09BD0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 1705.8 kg/km
  • Nominal outer diameter: 27.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 153 A



2C X 70 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22070BXZ6SB09BD0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 2260.5 kg/km
  • Nominal outer diameter: 31.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 188 A



2C X 95 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22095BXZ6SB09BD0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 3137 kg/km
  • Nominal outer diameter: 36.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 226 A



2C X 120 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22120BXZ6SB09BD0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 4475 kg/km
  • Nominal outer diameter: 40.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 257 A



2C X 150 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22150BXZ6SB09BD0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 5344.6 kg/km
  • Nominal outer diameter: 44.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 287 A



2C X 185 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22185BXZ6SB09BD0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 6915.8 kg/km
  • Nominal outer diameter: 50.2 mm
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 324 A



2C X 240 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22240BXZ6SB09BD0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 8499.4 kg/km
  • Nominal outer diameter: 54.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 546 A
  • Permissible current rating when buried: 375 A



2C X 300 Sq.mm CU/XLPE/SWA/PVC NEW

Nexans ref. 22300BXZ6SB09BD0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 10272.1 kg/km
  • Nominal outer diameter: 60.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 628 A
  • Permissible current rating when buried: 419 A



Description

Description

Standards

  • International
    IEC 60332-1; IEC 60502-1

Scope

 This specification covers two core, XLPE insulated cables for use on the Low Voltage Power Systems ,Street lighting and Small wiring systems. These cables are complying with IEC 60502-1



Design



1. Conductor

Plain annealed high-conductivity Stranded Copper Class 2 conforming to BS EN 60228



2. Insulation

XLPE



3. Filling or Bedding

 Extruded PVC



4. Armour

Single layer of Galvanised Steel Wires (GSWA)



5. Outer Sheath

Polyvinyl Chloride 'PVC'

 - Flame retardant : IEC60332-1

 - Colour :  Black



Marking

NO.OF CORES X Sq.mm CU/XLPE/SWA/PVC 600/1000 V  IEC 60502-1 MADE IN QATAR QICC-NEXANS Years  Meters







Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Stranded class 2
Conductor shape
Circular
Insulation
XLPE
Core identification
Red,Black
Inner sheath
PVC
Armour type
Galvanized steel wires
Outer sheath
PVC
Colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
2

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
12 (xD)
Bending factor when installed
8 (xD)
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Laying depth, center of system
700 mm
Max. pulling force during laying
50 N/mm2
Flame retardant
IEC 60332-1
