600/1000V ALSECURE PLUS® NX100 BS, Cu/Mica/XL-HFFR

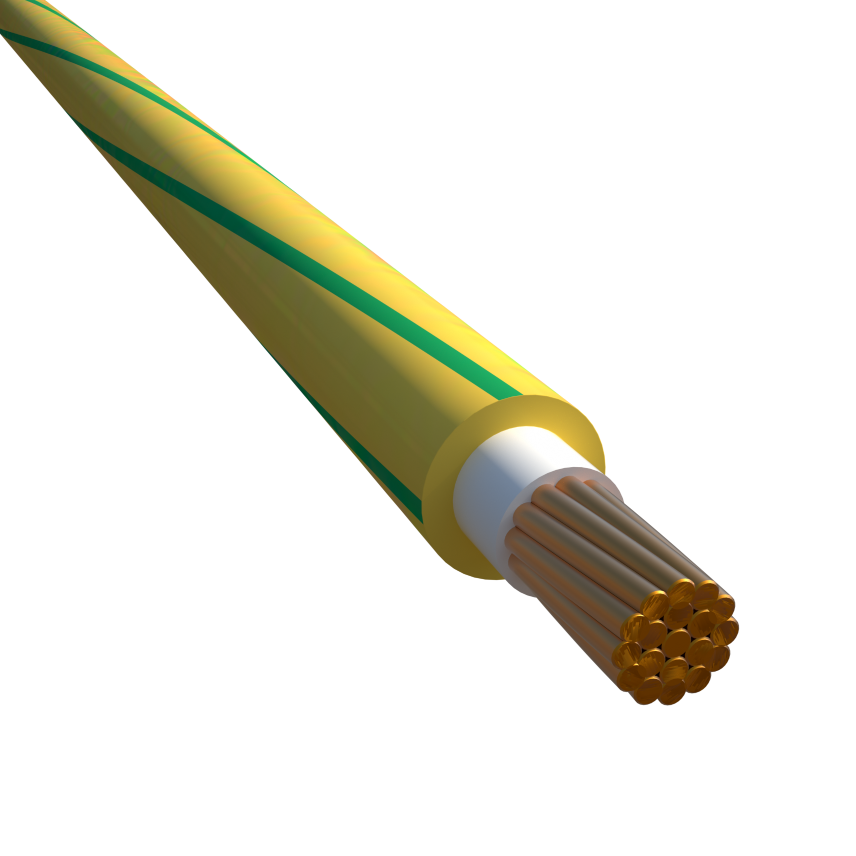

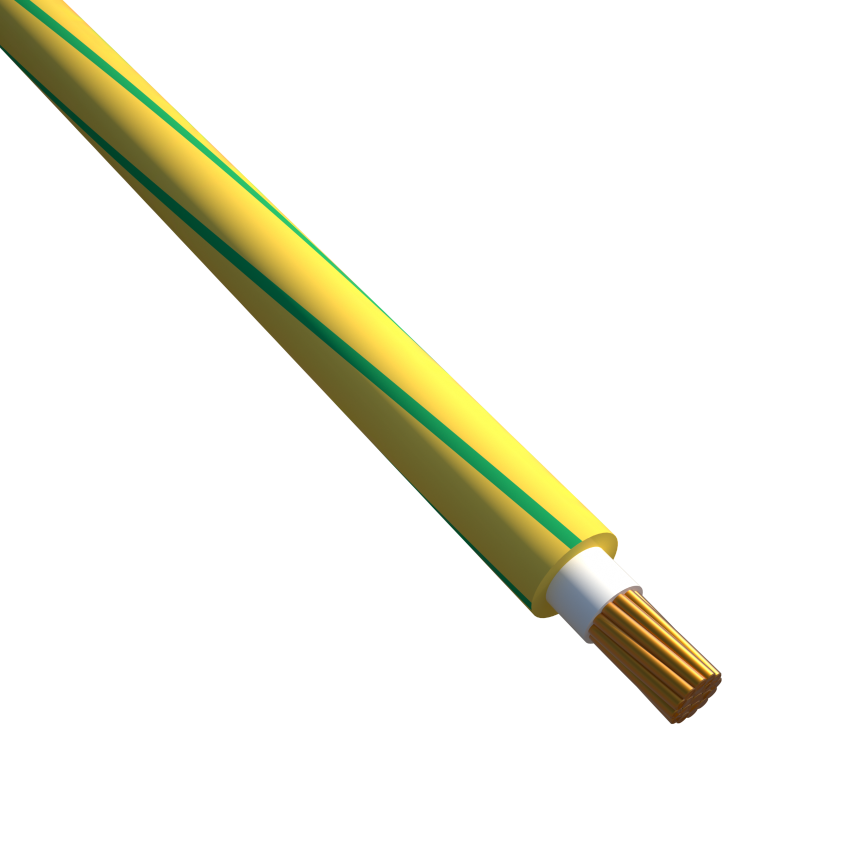

600/1000 V Fire Resistant ,Single core ,Halogen free and Flame retardant cables PRODUCT NAME : ALSECURE PLUS NX100
Read more1x1.5
Nexans ref. 21002PHZOUZ34BD0
- Nominal outer diameter: 3.7 mm
- Approximate weight: 26 kg/km
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 23 A
1x2.5
Nexans ref. 21003PHZOUZ34BD0
- Nominal outer diameter: 4.3 mm
- Approximate weight: 40 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 31 A
1x4
Nexans ref. 21004PHZOUZ34BD0
- Nominal outer diameter: 4.8 mm
- Approximate weight: 56 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 41 A
1x6
Nexans ref. 21006PHZOUZ34BD0
- Nominal outer diameter: 5.3 mm
- Approximate weight: 75 kg/km
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 54 A
1x10
Nexans ref. 21010PHZOUZ34AD0
- Nominal outer diameter: 6.5 mm
- Approximate weight: 120 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
1x16
Nexans ref. 21016PHZOUZ34AD0
- Nominal outer diameter: 7.4 mm
- Approximate weight: 178 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 95 A
1x25
Nexans ref. 21025PHZOUZ34AD0
- Nominal outer diameter: 9.1 mm
- Approximate weight: 271 kg/km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 126 A
1x35
Nexans ref. 21035PHZOUZ34AD0
- Nominal outer diameter: 10.1 mm
- Approximate weight: 359 kg/km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 140 A
1x50
Nexans ref. 21050PHZOUZ34AD0
- Nominal outer diameter: 11.7 mm
- Approximate weight: 490 kg/km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 166 A
1x70
Nexans ref. 21070PHZOUZ34AD0
- Nominal outer diameter: 13.3 mm
- Approximate weight: 681 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 204 A
1x95
Nexans ref. 21095PHZOUZ34AD0
- Nominal outer diameter: 15.4 mm
- Approximate weight: 946 kg/km
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 245 A
1x120
Nexans ref. 21120PHZOUZ34AD0
- Nominal outer diameter: 17.0 mm
- Approximate weight: 1157 kg/km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 279 A
1x150
Nexans ref. 21150PHZOUZ34AD0
- Nominal outer diameter: 19.0 mm
- Approximate weight: 1424 kg/km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 313 A
1x185
Nexans ref. 21185PHZOUZ34AD0
- Nominal outer diameter: 21.0 mm
- Approximate weight: 1791 kg/km
- Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
- Permissible current rating in open air: 354 A
1x240
Nexans ref. 21240PHZOUZ34AD0
- Nominal outer diameter: 23.0 mm
- Approximate weight: 2309 kg/km
- Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
- Permissible current rating in open air: 412 A
1x300
Nexans ref. 21300PHZOUZ34AD0
- Nominal outer diameter: 26.0 mm
- Approximate weight: 2889 kg/km
- Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
- Permissible current rating in open air: 466 A
1x400
Nexans ref. 21400PHZOUZ34AD0
- Nominal outer diameter: 30.0 mm
- Approximate weight: 3682 kg/km
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 531 A
1x500
Nexans ref. 21500PHZOUZ34AD0
- Nominal outer diameter: 33.0 mm
- Approximate weight: 4738 kg/km
- Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
- Permissible current rating in open air: 603 A
1x630
Nexans ref. 21630PHZOUZ34AD0
- Nominal outer diameter: 37.0 mm
- Approximate weight: 5972 kg/km
- Max. DC resistance of the conductor at 20°C: 0.028 Ohm/km
- Permissible current rating in open air: 686 A
Description
Description
Standards
-
ProductEN 50525-3-41
-
TestBS 6387; IEC 60331; IEC 60332-1; IEC 60754-1; IEC 60754-2; IEC 61034
Scope
These cables are widely used in Fire alarm systems ,emergency lightning power safety circuits when installed in conduits or protected trunking .
Design
- Conductor
Plain annealed high conductivity stranded bare copper class 2 to BS EN 60228
- Fire barrier
Mica Glass Tape
- Insulation
Cross Linked Halogen Free "XL-HFFR" compound
MARKING :
QICC-NEXANS ALSECURE PLUS NX100 CU/MICA/XL-HFFR 600/1000 V 1xmm2 IEC 60331-21 BS 6387 CAT CWZ LPCB 1262a/01 Year MTRS
* Mtr marking may not be available for supplies in Coils
Certficate of Product Approval
The product listed under this category are approved with LPCB ( LOSS PREVENTION CERTIFICATION BOARD) & QCDD (QATAR CIVIL DEFENSE DEPARTMENT) .
