ALSECURE PLUS® NX600 LV, 2 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846

Products

2X16

Nexans ref. 22016RXZHSH3ABS0

  • Conductor cross-section: 16 mm²
  • Approximate weight: 1005 kg/km
  • Nominal outer diameter: 23.2 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 84 A



2X25

Nexans ref. 22025RXZHSH3ABS0

  • Conductor cross-section: 25 mm²
  • Approximate weight: 1328 kg/km
  • Nominal outer diameter: 26.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 107 A



2X35

Nexans ref. 22035RXZHSH3ABS0

  • Conductor cross-section: 35 mm²
  • Approximate weight: 1797 kg/km
  • Nominal outer diameter: 29.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 129 A



2X50

Nexans ref. 22050RXZHSH3ABS0

  • Conductor cross-section: 50 mm²
  • Approximate weight: 2171 kg/km
  • Nominal outer diameter: 32.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 153 A



2X70

Nexans ref. 22070RXZHSH3ABS0

  • Conductor cross-section: 70 mm²
  • Approximate weight: 2788 kg/km
  • Nominal outer diameter: 36.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 188 A



2X95

Nexans ref. 22095RXZHSH3ABS0

  • Conductor cross-section: 95 mm²
  • Approximate weight: 3686 kg/km
  • Nominal outer diameter: 41.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 226 A



2X120

Nexans ref. 22120RXZHSH3ABS0

  • Conductor cross-section: 120 mm²
  • Approximate weight: 4330 kg/km
  • Nominal outer diameter: 44.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 257 A



2X150

Nexans ref. 22150RXZHSH3ABS0

  • Conductor cross-section: 150 mm²
  • Approximate weight: 5253 kg/km
  • Nominal outer diameter: 48.4 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 287 A



2X185

Nexans ref. 22185RXZHSH3ABS0

  • Conductor cross-section: 185 mm²
  • Approximate weight: 6520 kg/km
  • Nominal outer diameter: 54.4 mm
  • Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 324 A



2X240

Nexans ref. 22240RXZHSH3ABS0

  • Conductor cross-section: 240 mm²
  • Approximate weight: 8067 kg/km
  • Nominal outer diameter: 59.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
  • Permissible current rating in open air: 546 A
  • Permissible current rating when buried: 375 A



2X300

Nexans ref. 22300RXZHSH3ABS0

  • Conductor cross-section: 300 mm²
  • Approximate weight: 9372 kg/km
  • Nominal outer diameter: 64.2 mm
  • Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
  • Permissible current rating in open air: 628 A
  • Permissible current rating when buried: 419 A



2X400

Nexans ref. 22400RXZHSH3ABS0

  • Conductor cross-section: 400 mm²
  • Approximate weight: 11531 kg/km
  • Nominal outer diameter: 72.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating in open air: 731 A
  • Permissible current rating when buried: 439 A



Description

Description

Standards

  • International
    IEC 60331-21 ; IEC 60332-3-24; IEC 60754; IEC 61034
  • National
    BS 6387; BS 7846

Scope



These cables are widely used in Fire alarm systems ,emergency lightning power safety circuits when installed in conduits or protected trunking .



Design

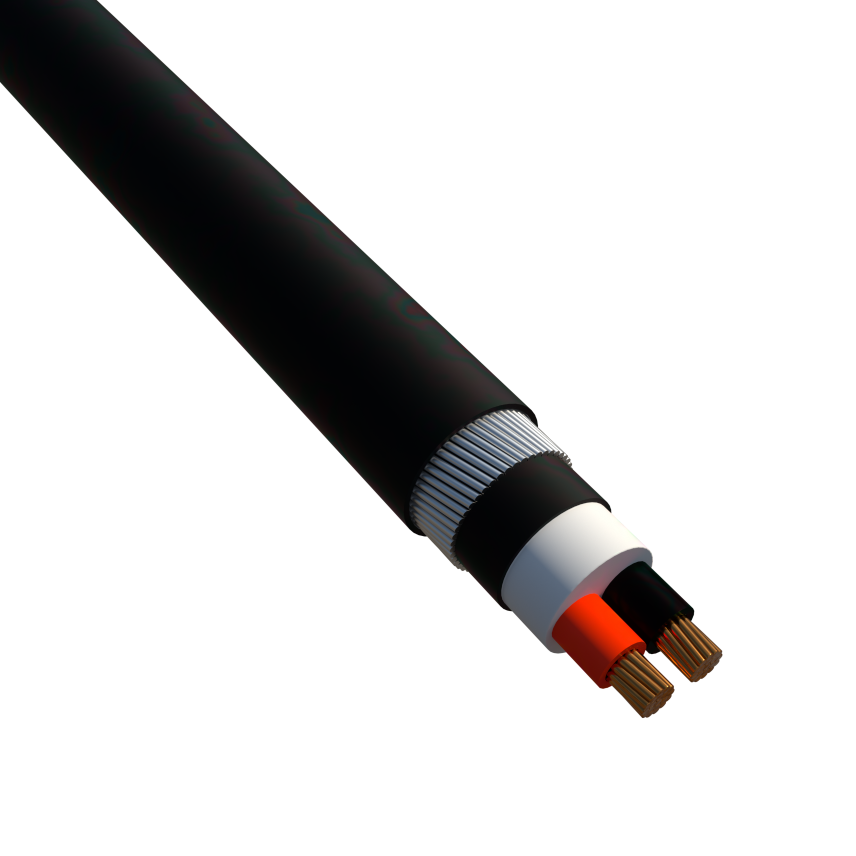

1.Conductor

Plain annealed high conductivity stranded bare copper class 2 to BS EN 60228



2.Fire barrier

Mica Glass Tape



3.Insulation

Cross Linked Polyethylene "XLPE"



4.  Bedding

Halogen Free Flame retardant "HFFR" .



5. Armour



Galvanised steel wire armour "SWA".



6. Outersheath



Halogen Free Flame retardant "HFFR" .





Marking (by Embossing/Engraving)



FIRST Line:

ELECTRIC CABLE 600/1000 V BS 7846-F120 QICC-NEXANS ALSECURE PLUS NX600   LPCB 1262d/01 YEAR

SECOND Line :

ELECTRIC CABLE 600/1000 V BS 7846-F120 QICC-NEXANS METER



Certficate of Product Approval



The product listed under this category are approved with LPCB ( LOSS PREVENTION CERTIFICATION BOARD) & QCDD (QATAR CIVIL DEFENSE DEPARTMENT) .

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Class 2
Conductor shape
Circular compacted
Insulation
XLPE
Core identification
Red,Black
Inner sheath
Halogen free flame retardant
Armour type
Galvanised round steel wires
Outer sheath
HFFR (Halogene Free Flame Retardant)
Colour
Black
Halogen free
Yes

Dimensional characteristics

Dimensional characteristics

Number of cores
2

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
12 (xD)
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Flame retardant
IEC 60332-3-24
Laying depth, center of system
700 mm
Max. pulling force during laying
50 N/mm2
