ALSECURE PLUS® NX400 LV, 3 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846

Products

3C X 16 Sq.mm

Nexans ref. 23016RXZHSH34BS0

  • Conductor shape: Circular
  • Conductor cross-section: 16 mm²
  • Approximate weight: 1079 kg/km
  • Nominal outer diameter: 21.7 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 99 A
  • Permissible current rating when buried: 84 A



3C X 25 Sq.mm

Nexans ref. 23025RXZHSH34BS0

  • Conductor shape: Circular
  • Conductor cross-section: 25 mm²
  • Approximate weight: 1603 kg/km
  • Nominal outer diameter: 26.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 131 A
  • Permissible current rating when buried: 107 A



3C X 35 Sq.mm

Nexans ref. 23035RXZHSH34BS0

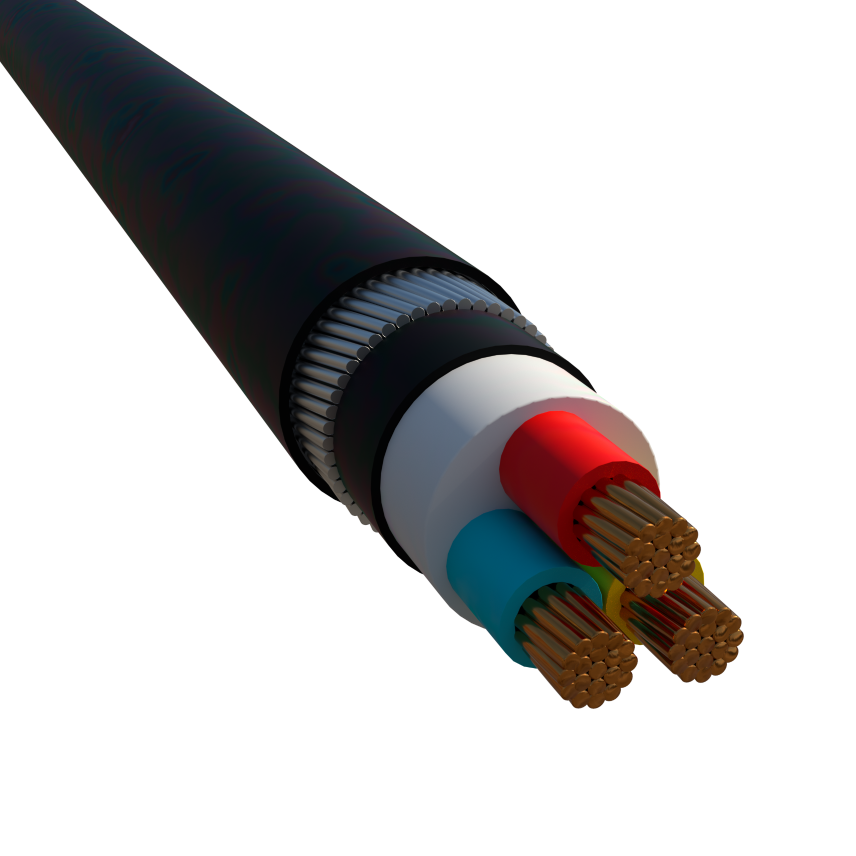

  • Conductor shape: Circular
  • Conductor cross-section: 35 mm²
  • Approximate weight: 1953 kg/km
  • Nominal outer diameter: 28.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 162 A
  • Permissible current rating when buried: 129 A



3C X 50 Sq.mm

Nexans ref. 23050RXZHSH34BS0

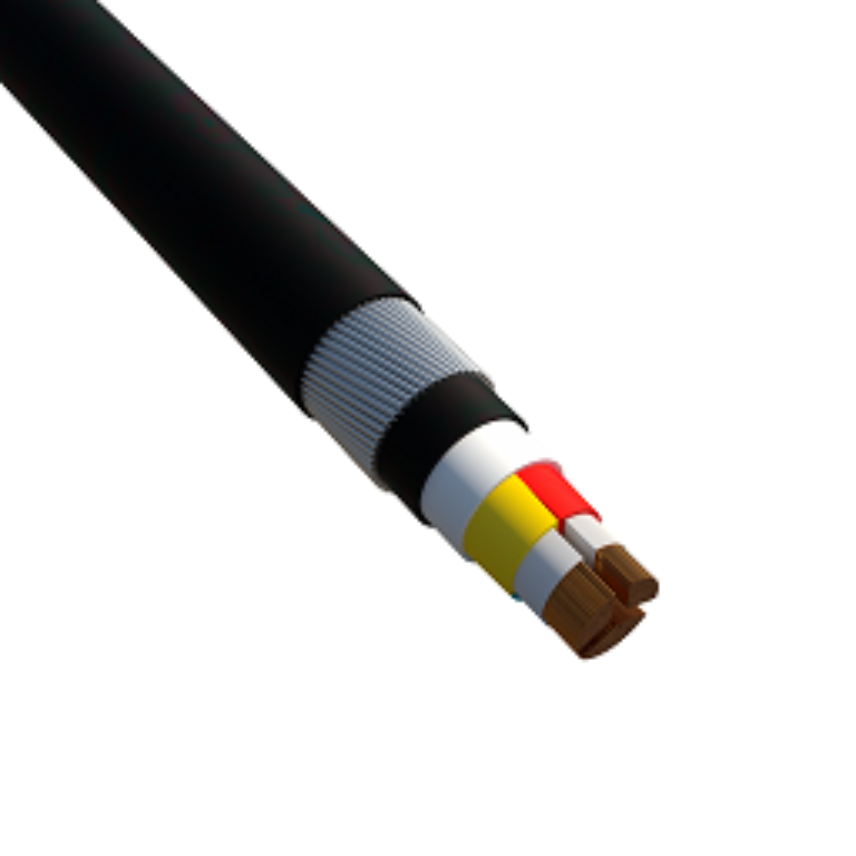

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 50 mm²
  • Approximate weight: 2341 kg/km
  • Nominal outer diameter: 29.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 197 A
  • Permissible current rating when buried: 153 A



3C X 70 Sq.mm

Nexans ref. 23070RXZHSH34BS0

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 70 mm²
  • Approximate weight: 3062 kg/km
  • Nominal outer diameter: 33.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 251 A
  • Permissible current rating when buried: 188 A



3C X 95 Sq.mm

Nexans ref. 23095RXZHSH34BS0

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 95 mm²
  • Approximate weight: 4267 kg/km
  • Nominal outer diameter: 37.7 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 304 A
  • Permissible current rating when buried: 226 A



3C X 120 Sq.mm

Nexans ref. 23120RXZHSH34BS0

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 120 mm²
  • Approximate weight: 5025 kg/km
  • Nominal outer diameter: 40.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 257 A



3C X 150 Sq.mm

Nexans ref. 23150RXZHSH34BS0

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 150 mm²
  • Approximate weight: 6344 kg/km
  • Nominal outer diameter: 45.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 406 A
  • Permissible current rating when buried: 287 A



3C X 185 Sq.mm

Nexans ref. 23185RXZHSH34BS0

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 185 mm²
  • Approximate weight: 7659 kg/km
  • Nominal outer diameter: 49.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
  • Permissible current rating in open air: 463 A
  • Permissible current rating when buried: 324 A



3C X 240 Sq.mm

Nexans ref. 23240RXZHSH34BS0

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 240 mm²
  • Approximate weight: 9522 kg/km
  • Nominal outer diameter: 54.7 mm
  • Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
  • Permissible current rating in open air: 546 A
  • Permissible current rating when buried: 375 A



3C X 300 Sq.mm

Nexans ref. 23300RXZHSH34BS0

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 300 mm²
  • Approximate weight: 11529 kg/km
  • Nominal outer diameter: 59.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
  • Permissible current rating in open air: 628 A
  • Permissible current rating when buried: 419 A



3C X 400 Sq.mm

Nexans ref. 23400RXZHSH34BS0

  • Conductor shape: Sector-shaped
  • Conductor cross-section: 400 mm²
  • Approximate weight: 14377 kg/km
  • Nominal outer diameter: 66.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating in open air: 731 A
  • Permissible current rating when buried: 439 A



Description

Description

Standards

  • International
    IEC 60331-21 ; IEC 60332-3-24; IEC 60754; IEC 61034
  • National
    BS 6387; BS 7846

Scope



These cables are widely used in Fire alarm systems ,emergency lightning power safety circuits when installed in conduits or protected trunking .



Design



1.Conductor

Plain annealed high conductivity stranded bare copper class 2 to BS EN 60228



2.Fire barrier

Mica Glass Tape



3.Insulation

Cross Linked Polyethylene "XLPE"



4.  Bedding

Halogen Free Flame retardant "HFFR" .



5. Armour



Galvanised steel wire armour "SWA".



6. Outersheath



Halogen Free Flame retardant "HFFR" .





Marking (by Embossing/Engraving)



FIRST Line:

ELECTRIC CABLE 600/1000 V BS 7846-F2 QICC-NEXANS ALSECURE PLUS NX400 No.of cores X Size  LPCB 1262b/01 YEAR

SECOND Line :

ELECTRIC CABLE 600/1000 V BS 7846-F2 QICC-NEXANS METER



Certficate of Product Approval



The product listed under this category are approved with LPCB ( LOSS PREVENTION CERTIFICATION BOARD) & QCDD (QATAR CIVIL DEFENSE DEPARTMENT) .

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Class 2
Insulation
XLPE
Core identification
Red,Blue,Yellow
Inner sheath
Halogen free flame retardant
Armour type
Galvanized steel wires
Outer sheath
Halogen free flame retardant
Colour
Black
Halogen free
Yes

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Thermal soil resistivity dry zone
2.5 °K.m/W

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
12 (xD)
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Fire resistant
IEC 60331-1
Flame retardant
IEC 60332-3 Cat. C
Laying depth, center of system
700 mm
Max. pulling force during laying
50 N/mm2
