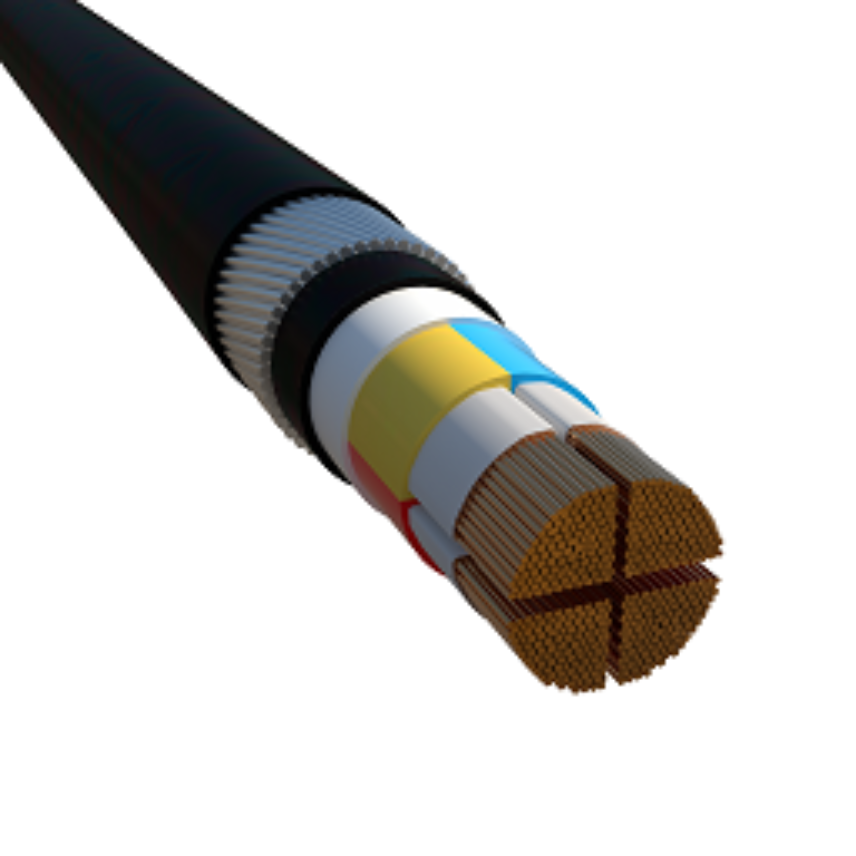

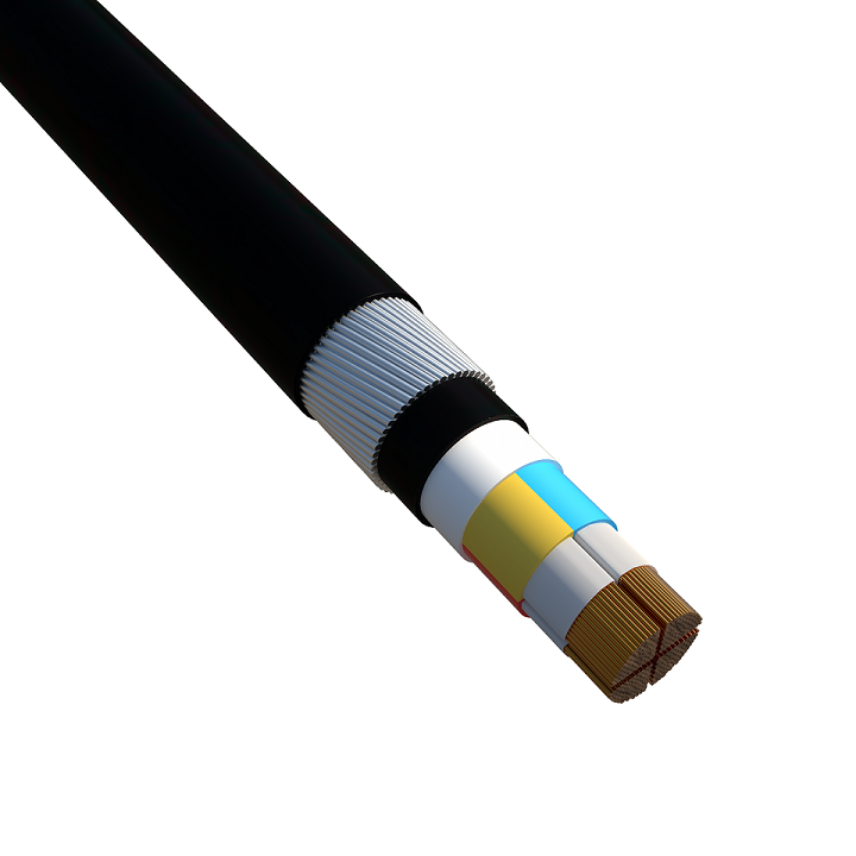

ALSECURE PLUS® NX400 LV, 4 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
ALSECURE PLUS® NX400 LV, 4 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
ALSECURE PLUS® NX400 LV, 4 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
Read more4C X 16 Sq.mm NEW
Nexans ref. 24016RXZHSH34BS0
- Conductor shape: Circular
- Conductor cross-section: 16 mm²
- Approximate weight: 1281 kg/km
- Nominal outer diameter: 23.5 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 84 A
4C X 25 Sq.mm NEW
Nexans ref. 24025RXZHSH34BS0
- Conductor shape: Circular
- Conductor cross-section: 25 mm²
- Approximate weight: 1927 kg/km
- Nominal outer diameter: 28.7 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 107 A
4C X 35 Sq.mm NEW
Nexans ref. 24035RXZHSH34BS0
- Conductor shape: Circular
- Conductor cross-section: 35 mm²
- Approximate weight: 2370 kg/km
- Nominal outer diameter: 31.3 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 162 A
- Permissible current rating when buried: 129 A
4C X 50 Sq.mm NEW
Nexans ref. 24050RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 50 mm²
- Approximate weight: 2900 kg/km
- Nominal outer diameter: 31.6 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 197 A
- Permissible current rating when buried: 153 A
4C X 70 Sq.mm NEW
Nexans ref. 24070RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 70 mm²
- Approximate weight: 4126 kg/km
- Nominal outer diameter: 37.0 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 251 A
- Permissible current rating when buried: 188 A
4C X 95 Sq.mm NEW
Nexans ref. 24095RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 95 mm²
- Approximate weight: 5277 kg/km
- Nominal outer diameter: 40.7 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 304 A
- Permissible current rating when buried: 226 A
4C X 120 Sq.mm NEW
Nexans ref. 24120RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 120 mm²
- Approximate weight: 6703 kg/km
- Nominal outer diameter: 45.4 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 257 A
4C X 150 Sq.mm NEW
Nexans ref. 24150RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 150 mm²
- Approximate weight: 8015 kg/km
- Nominal outer diameter: 49.4 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 406 A
- Permissible current rating when buried: 287 A
4C X 185 Sq.mm NEW
Nexans ref. 24185RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 185 mm²
- Approximate weight: 9701 kg/km
- Nominal outer diameter: 54.3 mm
- Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
- Permissible current rating in open air: 463 A
- Permissible current rating when buried: 324 A
4C X 240 Sq.mm NEW
Nexans ref. 24240RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 240 mm²
- Approximate weight: 12153 kg/km
- Nominal outer diameter: 60.2 mm
- Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
- Permissible current rating in open air: 546 A
- Permissible current rating when buried: 375 A
4C X 300 Sq.mm NEW
Nexans ref. 24300RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 300 mm²
- Approximate weight: 14785 kg/km
- Nominal outer diameter: 66.9 mm
- Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
- Permissible current rating in open air: 628 A
- Permissible current rating when buried: 419 A
4C X 400 Sq.mm NEW
Nexans ref. 24400RXZHSH34BS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 400 mm²
- Approximate weight: 19290 kg/km
- Nominal outer diameter: 74.8 mm
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 731 A
- Permissible current rating when buried: 439 A
Description
Description
Standards
-
InternationalIEC 60331-21 ; IEC 60332-3-24; IEC 60754; IEC 61034
-
NationalBS 6387; BS 7846
Scope
These cables are widely used in Fire alarm systems ,emergency lightning power safety circuits when installed in conduits or protected trunking .
Design
1.Conductor
Plain annealed high conductivity stranded bare copper class 2 to BS EN 60228
2.Fire barrier
Mica Glass Tape
3.Insulation
Cross Linked Polyethylene "XLPE"
4. Bedding
Halogen Free Flame retardant "HFFR" .
5. Armour
Galvanised steel wire armour "SWA".
6. Outersheath
Halogen Free Flame retardant "HFFR" .
Marking (by Embossing/Engraving)
FIRST Line:
ELECTRIC CABLE 600/1000 V BS 7846-F2 QICC-NEXANS ALSECURE PLUS NX400 No.of cores X Size LPCB 1262b/01 YEAR
SECOND Line :
ELECTRIC CABLE 600/1000 V BS 7846-F2 QICC-NEXANS METER
Certficate of Product Approval
The product listed under this category are approved with LPCB ( LOSS PREVENTION CERTIFICATION BOARD) & QCDD (QATAR CIVIL DEFENSE DEPARTMENT) .
