ALSECURE PLUS® NX400 LV, 2 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
NEW
ALSECURE PLUS® NX400 LV, 2 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
ALSECURE® NX400
ALSECURE PLUS® NX400 LV, 2 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
Read more2CX16
Nexans ref. 22016RXZHSH34BS0
- Conductor cross-section: 16 mm²
- Approximate weight: 842 kg/km
- Nominal outer diameter: 20.4 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 84 A
2CX25
Nexans ref. 22025RXZHSH34BS0
- Conductor cross-section: 25 mm²
- Approximate weight: 1150 kg/km
- Nominal outer diameter: 23.7 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 107 A
2CX35
Nexans ref. 22035RXZHSH34BS0
- Conductor cross-section: 35 mm²
- Approximate weight: 1578 kg/km
- Nominal outer diameter: 26.8 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 162 A
- Permissible current rating when buried: 129 A
2CX50
Nexans ref. 22050RXZHSH34BS0
- Conductor cross-section: 50 mm²
- Approximate weight: 1918 kg/km
- Nominal outer diameter: 29.8 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 197 A
- Permissible current rating when buried: 153 A
2CX70
Nexans ref. 22070RXZHSH34BS0
- Conductor cross-section: 70 mm²
- Approximate weight: 2572 kg/km
- Nominal outer diameter: 33.5 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 251 A
- Permissible current rating when buried: 188 A
2CX95
Nexans ref. 22095RXZHSH34BS0
- Conductor cross-section: 95 mm²
- Approximate weight: 3389 kg/km
- Nominal outer diameter: 38.2 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 304 A
- Permissible current rating when buried: 226 A
2CX120
Nexans ref. 22120RXZHSH34BS0
- Conductor cross-section: 120 mm²
- Approximate weight: 4037 kg/km
- Nominal outer diameter: 41.8 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 257 A
2CX150
Nexans ref. 22150RXZHSH34BS0
- Conductor cross-section: 150 mm²
- Approximate weight: 4920 kg/km
- Nominal outer diameter: 45.3 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 406 A
- Permissible current rating when buried: 287 A
2CX185
Nexans ref. 22185RXZHSH34BS0
- Conductor cross-section: 185 mm²
- Approximate weight: 6125 kg/km
- Nominal outer diameter: 51.0 mm
- Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
- Permissible current rating in open air: 463 A
- Permissible current rating when buried: 324 A
2CX240
Nexans ref. 22240RXZHSH34BS0
- Conductor cross-section: 240 mm²
- Approximate weight: 7649 kg/km
- Nominal outer diameter: 55.6 mm
- Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
- Permissible current rating in open air: 546 A
- Permissible current rating when buried: 375 A
2CX300
Nexans ref. 22300RXZHSH34BS0
- Conductor cross-section: 300 mm²
- Approximate weight: 8923 kg/km
- Nominal outer diameter: 60.8 mm
- Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
- Permissible current rating in open air: 628 A
- Permissible current rating when buried: 419 A
2CX400
Nexans ref. 22400RXZHSH34BS0
- Conductor cross-section: 400 mm²
- Approximate weight: 11032 kg/km
- Nominal outer diameter: 68.9 mm
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 731 A
- Permissible current rating when buried: 439 A
Description
Description
Standards
-
ProductBS 7846
-
TestBS 6387; IEC 60331-1 or 2; IEC 60332-3-24; IEC 60754; IEC 61034
Applications
These cables are widely used in Fire alarm systems ,emergency lightning power safety circuits when installed in conduits or protected trunking .

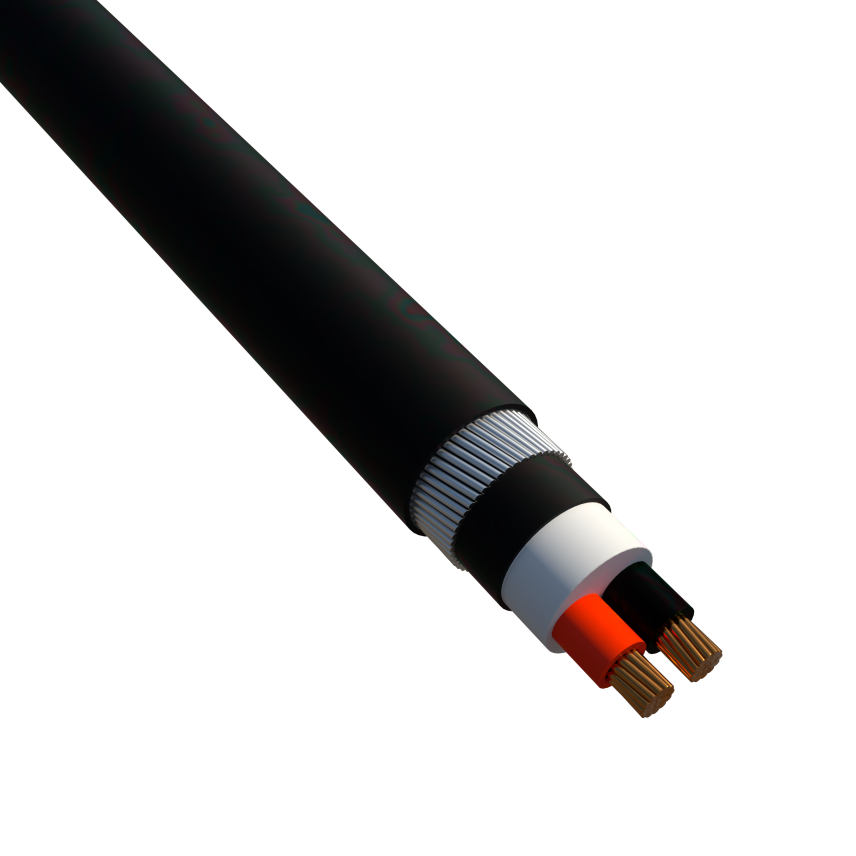

Construction
Conductor
Plain annealed high conductivity stranded bare copper class 2 to BS EN 60228
Fire barrier
Mica Glass Tape
Insulation
Cross Linked Polyethylene "XLPE"
Bedding
Halogen Free Flame retardant "HFFR" .
Armour
Galvanised steel wire armour "SWA".
Outersheath
Halogen Free Flame retardant "HFFR" .
Certficate of Product Approval
The product listed under this category are approved with LPCB ( LOSS PREVENTION CERTIFICATION BOARD) & QCDD (QATAR CIVIL DEFENSE DEPARTMENT) .
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Fire safety characteristics
Fire safety characteristics
Resources
Resources
Selling & delivery Information
Marking (by Embossing/Engraving)
FIRST Line:
ELECTRIC CABLE 600/1000 V BS 7846-F2 QICC-NEXANS ALSECURE PLUS NX400 No.of cores X Size LPCB 1262b/01 YEAR
SECOND Line :
ELECTRIC CABLE 600/1000 V BS 7846-F2 QICC-NEXANS METER
