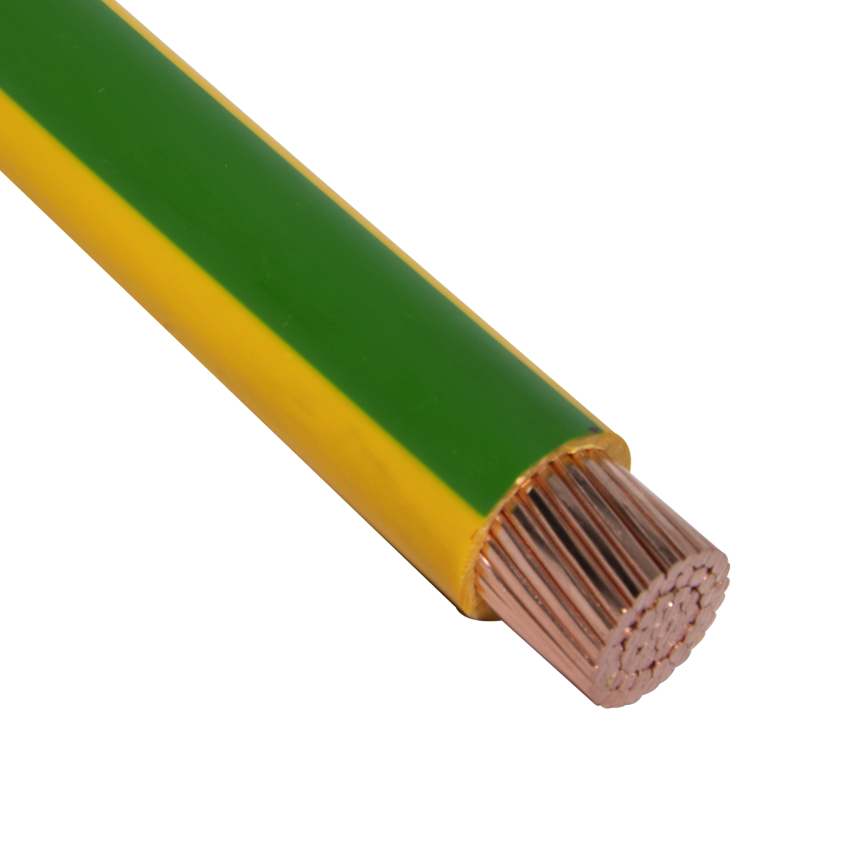

Q-WIRE CU/PVC AS PER BS EN 50525-2-31

Products

1x1.5

Nexans ref. 21002YVZOUZ09ADY

  • Approximate weight: 22.2 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 2.92 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Rated current: 17.5 A



1x2.5

Nexans ref. 21003YVZOUZ09ADY

  • Approximate weight: 32.9 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Rated current: 24 A



1x4

Nexans ref. 21004YVZOUZ09ADY

  • Approximate weight: 47.8 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.12 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Rated current: 32 A



1x6

Nexans ref. 21006YVZOUZ09ADY

  • Approximate weight: 66.3 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.7 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Rated current: 41 A



1x10

Nexans ref. 21010YVZOUZ09AD0

  • Approximate weight: 108.7 kg/km
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.76 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Rated current: 57 A



1x16

Nexans ref. 21016YVZOUZ09AD0

  • Approximate weight: 164.9 kg/km
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.67 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Rated current: 76 A



1x25

Nexans ref. 21025YVZOUZ09AD0

  • Approximate weight: 254.9 kg/km
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Rated current: 101 A



1x35

Nexans ref. 21035YVZOUZ09AD0

  • Approximate weight: 341.48 kg/km
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Rated current: 125 A



1x50

Nexans ref. 21050YVZOUZ09AD0

  • Approximate weight: 468.5 kg/km
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 10.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Rated current: 151 A



1x70

Nexans ref. 21070YVZOUZ09AD0

  • Approximate weight: 655.64 kg/km
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 12.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Rated current: 192 A



1x95

Nexans ref. 21095YVZOUZ09AD0

  • Approximate weight: 915.2 kg/km
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 14.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Rated current: 232 A



1x120

Nexans ref. 21120YVZOUZ09AD0

  • Approximate weight: 1121.98 kg/km
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 16.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Rated current: 269 A



1x150

Nexans ref. 21150YVZOUZ09AD0

  • Approximate weight: 1385.1 kg/km
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 17.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Rated current: 300 A



1x185

Nexans ref. 21185YVZOUZ09AD0

  • Approximate weight: 1745.45 kg/km
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
  • Rated current: 341 A



1x240

Nexans ref. 21240YVZOUZ09AD0

  • Approximate weight: 2257.42 kg/km
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 22.4 mm
  • Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
  • Rated current: 400 A



1x300

Nexans ref. 21300YVZOUZ09AD0

  • Approximate weight: 2829.35 kg/km
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 24.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
  • Rated current: 458 A



1x400

Nexans ref. 21400YVZOUZ09AD0

  • Approximate weight: 3613.09 kg/km
  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 28.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Rated current: 546 A



1x500

Nexans ref. 21500YVZOUZ09AD0

  • Approximate weight: 4661.86 kg/km
  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 32.36 mm
  • Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
  • Rated current: 626 A



1x630

Nexans ref. 21630YVZOUZ09AD0

  • Approximate weight: 5887.22 kg/km
  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 35.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.028 Ohm/km
  • Rated current: 720 A



Description

Description

Standards

  • International
    EN 50525-2-31

Application

These cables are intended for fixed wiring applications ,protected installations indoors for power supply or lightings (from offices, domestic or commercial buildings ...) and for earthing with voltage upto and including 450/750 V



  1. Conductor : Stranded bare copper class 2 to BS EN 60228.
  2. Insulation: Polyvinyl chloride "PVC"
  3. Colours: Availble in Standard colours of G/Y ,Green ,Yellow,Brown ,White ,Black ,Blue or as required by customer .



Packing

For Cable sizes l.5 Sq.mm to 6 Sq.mm can be supplied in coils of 100 yards (91.44 mtrs) or 500 mtr coil .

For Cable sizes > =10 Sq.mm shall be supplied in drums of 3000 mtrs Standard length

* Packaging in Coils /Drums for  sizes shall be available upon request .

Marking :

450/750 V Cu / PVC   1 x Size  H07V-R 70 ˚C EN 50525-2-31 BASEC Made In QATAR QICC - Nexans Year Meters



Certification :

BASEC (British approval services of cables)

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Copper
Insulation
PVC

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450 / 750 V

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Bending factor when laying
8 (xD)
