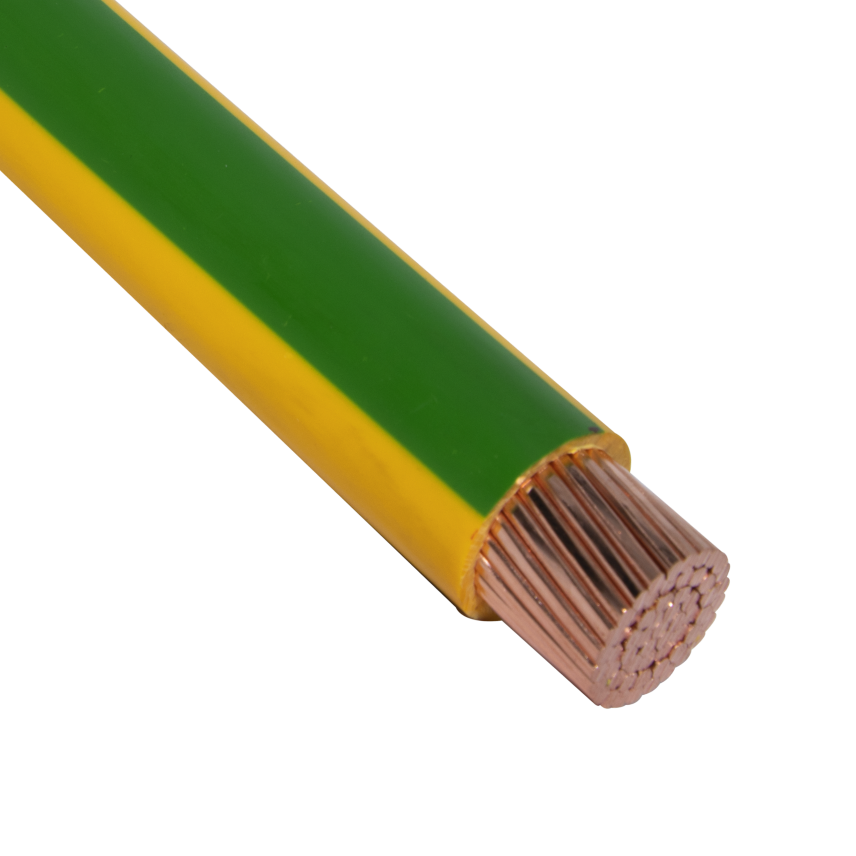

AL-SECURE CU/XL-HFFR AS PER BS EN 50525-3-41

Products

1x1.5

Nexans ref. 21002PHZOU000ADY

  • Approximate weight: 22.6 kg/km
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 2.92 mm
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Rated current: 22 A



1x2.5

Nexans ref. 21003PHZOU000ADY

  • Approximate weight: 33.41 kg/km
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Rated current: 30 A



1x4

Nexans ref. 21004PHZOU000ADY

  • Approximate weight: 48.42 kg/km
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.12 mm
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Rated current: 40 A



1x6

Nexans ref. 21006PHZOU000ADY

  • Approximate weight: 66.91 kg/km
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.7 mm
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Rated current: 51 A



1x10

Nexans ref. 21010PHZOU000AD0

  • Approximate weight: 109.8 kg/km
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.76 mm
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Rated current: 71 A



1x16

Nexans ref. 21016PHZOU000AD0

  • Approximate weight: 166.04 kg/km
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.67 mm
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Rated current: 95 A



1x25

Nexans ref. 21025PHZOU000AD0

  • Approximate weight: 256.72 kg/km
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Rated current: 126 A



1x35

Nexans ref. 21035PHZOU000AD0

  • Approximate weight: 343.64 kg/km
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Rated current: 140 A



1x50

Nexans ref. 21050PHZOU000AD0

  • Approximate weight: 471.42 kg/km
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 10.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Rated current: 166 A



1x70

Nexans ref. 21070PHZOU000AD0

  • Approximate weight: 658.91 kg/km
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 12.5 mm
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Rated current: 204 A



1x95

Nexans ref. 21095PHZOU000AD0

  • Approximate weight: 919.64 kg/km
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 14.6 mm
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Rated current: 245 A



1x120

Nexans ref. 21120PHZOU000AD0

  • Approximate weight: 1126.85 kg/km
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 16.1 mm
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Rated current: 279 A



1x150

Nexans ref. 21150PHZOU000AD0

  • Approximate weight: 1391.17 kg/km
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 17.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Rated current: 313 A



1x185

Nexans ref. 21185PHZOU000AD0

  • Approximate weight: 1752.93 kg/km
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 20.0 mm
  • Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
  • Rated current: 354 A



1x240

Nexans ref. 21240PHZOU000AD0

  • Approximate weight: 2266.55 kg/km
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 22.4 mm
  • Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
  • Rated current: 412 A



1x300

Nexans ref. 21300PHZOU000AD0

  • Approximate weight: 2840.44 kg/km
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 24.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
  • Rated current: 466 A



1x400

Nexans ref. 21400PHZOU000AD0

  • Approximate weight: 3627.16 kg/km
  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 28.8 mm
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Rated current: 531 A



1x500

Nexans ref. 21500PHZOU000AD0

  • Approximate weight: 4678.92 kg/km
  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 32.36 mm
  • Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
  • Rated current: 603 A



1x630

Nexans ref. 21630PHZOU000AD0

  • Approximate weight: 5906.36 kg/km
  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 35.9 mm
  • Max. DC resistance of the conductor at 20°C: 0.028 Ohm/km
  • Rated current: 686 A



Description

Description

Standards

  • International
    EN 50525-3-41

Application

These cables are intended for fixed wiring applications ,Used in energy networks in refineries,mines,hotels,schools ,tunnels ,hgh constructions ,hospitals ,power plants ,data processing centres where there is a risk of fire with voltage upto and including 450/750 V



  1. Conductor : Stranded bare copper class 2 to BS EN 60228.
  2. Insulation: Cross linked Halogen free (XL-HFFR)
  3. Colours: Available in Standard colours of G/Y ,Green ,Yellow,Brown ,White ,Black ,Blue or as required by customer .



Packing

For Cable sizes 1.5Sq.mm to 6 Sq.mm can be supplied in coils of 100 yards (91.44 mtrs)

For Cable sizes >= 10 Sq.mm shall be supplied in drums of 3000 mtrs standard length .

* Packaging in Coils/Drums for other sizes shall be available upon request .



Marking

450/750 V Cu / XL-HFFR   1 x Size  H07Z-R 90 ˚C EN 50525-3-41 BASEC Made In QATAR QICC - Nexans Year Meters



Certification :

BASEC (British approval services of cables)

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Stranded class 2
Conductor material
Bare copper
Insulation
XL-HFFR

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450 / 750 V

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Flame retardant
Yes
Bending factor when laying
8 (xD)
Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
